1. The Difference

A depth value does not always mean the same thing.

For a camera-space point

$ P=(X,Y,Z), $

two common definitions are:

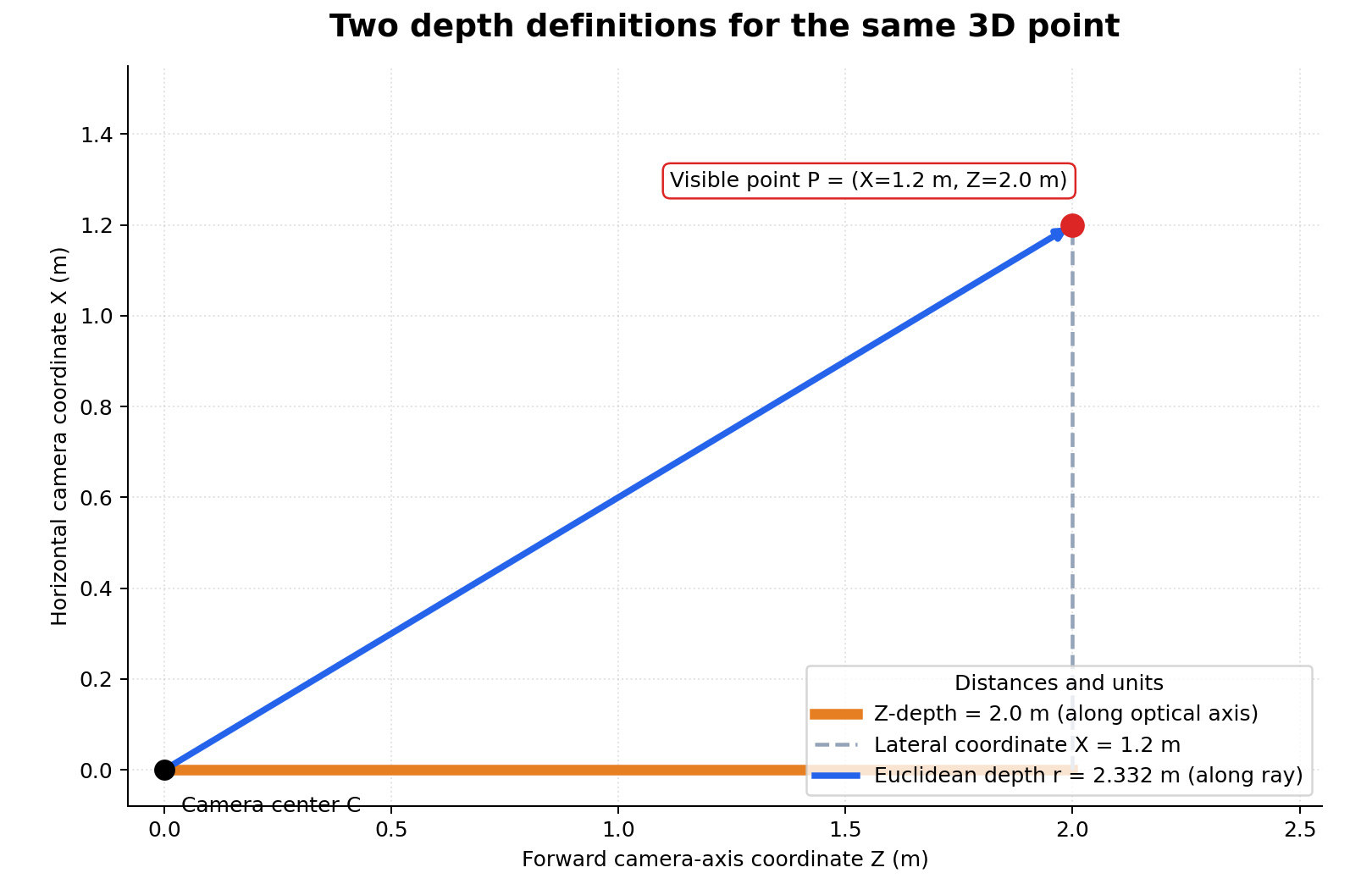

The orange line is Z-depth along the optical axis, while the blue line is Euclidean depth along the viewing ray. All distances are in meters.

The two values are equal only for a point on the optical axis. Away from the image center, Euclidean depth is larger because the viewing ray is diagonal.

2. Reconstructing a 3D Point

For pixel $(u,v)$ and camera intrinsics $(f_x,f_y,c_x,c_y)$, first form the unnormalized camera ray:

$ q= \begin{pmatrix} \dfrac{u-c_x}{f_x}\\[4pt] \dfrac{v-c_y}{f_y}\\[4pt] 1 \end{pmatrix}. $

Its last component is 1, so it is convenient when the depth map stores Z-depth:

$ P=Zq. $

If the depth map instead stores Euclidean depth $r$, normalize the ray:

$ d=\frac{q}{\lVert q\rVert}, \qquad P=rd. $

The important distinction is:

Z-depth:       multiply the unnormalized ray q
Euclidean depth: multiply the unit ray d

3. Worked Example

Suppose:

fx = fy = 500 pixels
cx = 320 pixels
cy = 240 pixels
pixel = (620, 240)

The pixel is 300 pixels to the right of the principal point:

$ q= \begin{pmatrix} (620-320)/500\\ (240-240)/500\\ 1 \end{pmatrix} = \begin{pmatrix} 0.6\\ 0\\ 1 \end{pmatrix}. $

The length of this ray vector is:

$ \lVert q\rVert=\sqrt{0.6^2+0^2+1^2}\approx1.166. $

If the sensor reports Z-depth = 2 m

$ P=2q=(1.2,\ 0,\ 2.0)\text{ m}. $

The point is 2 m forward, but its Euclidean distance from the camera is:

$ r=\sqrt{1.2^2+2.0^2}\approx2.332\text{ m}. $

If the sensor reports Euclidean depth = 2 m

First normalize the ray:

$ d=\frac{(0.6,0,1)}{1.166}\approx(0.514,\ 0,\ 0.857). $

Then:

$ P=2d\approx(1.029,\ 0,\ 1.715)\text{ m}. $

Now the point is exactly 2 m from the camera, but only about 1.715 m forward.

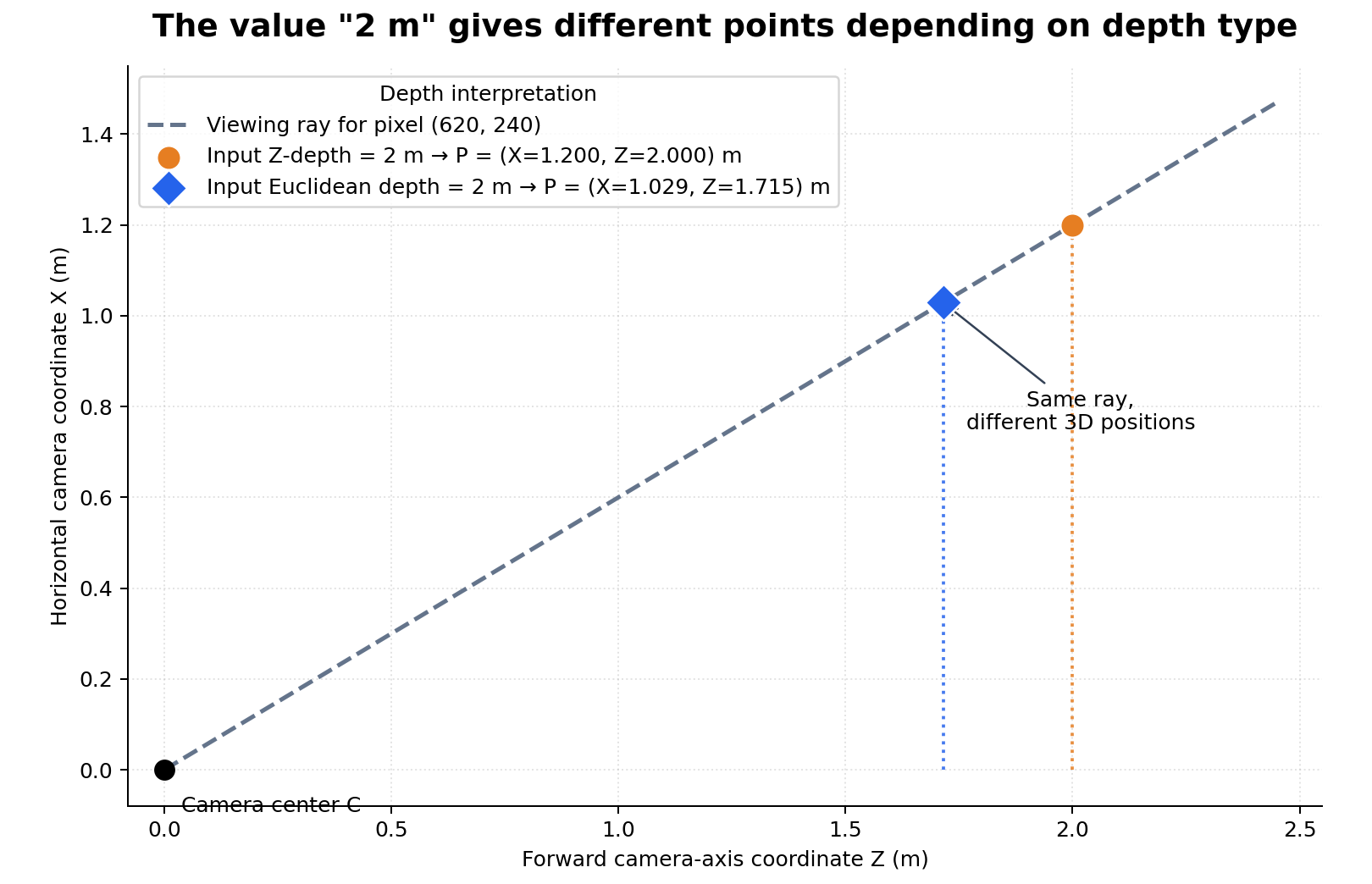

Both points lie on the same viewing ray, but interpreting 2 m as Z-depth places the point farther from the camera than interpreting it as Euclidean depth.

This is why using the correct depth definition matters most near the edges of an image. At the principal point, $q=(0,0,1)$, so both definitions give the same result.

4. Converting Between the Two

Because

$ P=Zq=rd, $

the conversion is:

$ r=Z\lVert q\rVert $

and:

$ Z=\frac{r}{\lVert q\rVert}. $

Written directly using the pixel and intrinsics:

$ r= Z\sqrt{ \left(\frac{u-c_x}{f_x}\right)^2+ \left(\frac{v-c_y}{f_y}\right)^2+ 1 }. $

5. The Common Mistake

If a sensor gives Euclidean depth $r$, this is wrong:

point = r * ray

when ray is the unnormalized vector $q$. The resulting point will be farther than $r$ from the camera.

Use:

ray = np.array([
    (u - cx) / fx,
    (v - cy) / fy,
    1.0,
])

if depth_type == "z":
    point = depth * ray
elif depth_type == "euclidean":
    point = depth * ray / np.linalg.norm(ray)
else:
    raise ValueError(f"Unknown depth type: {depth_type}")

Always check the sensor or library documentation for terms such as z-depth, axial depth, range, radial depth, or distance.

6. The Short Version

• Z-depth measures how far forward the point is.
• Euclidean depth measures the straight-line distance to the point.
• Use $P=Zq$ for Z-depth.
• Use $P=r(q/\lVert q\rVert)$ for Euclidean depth.
• They are equal at the principal point and increasingly different toward the image edges.

In one sentence:

Z-depth follows the camera's forward axis; Euclidean depth follows the pixel's viewing ray.
